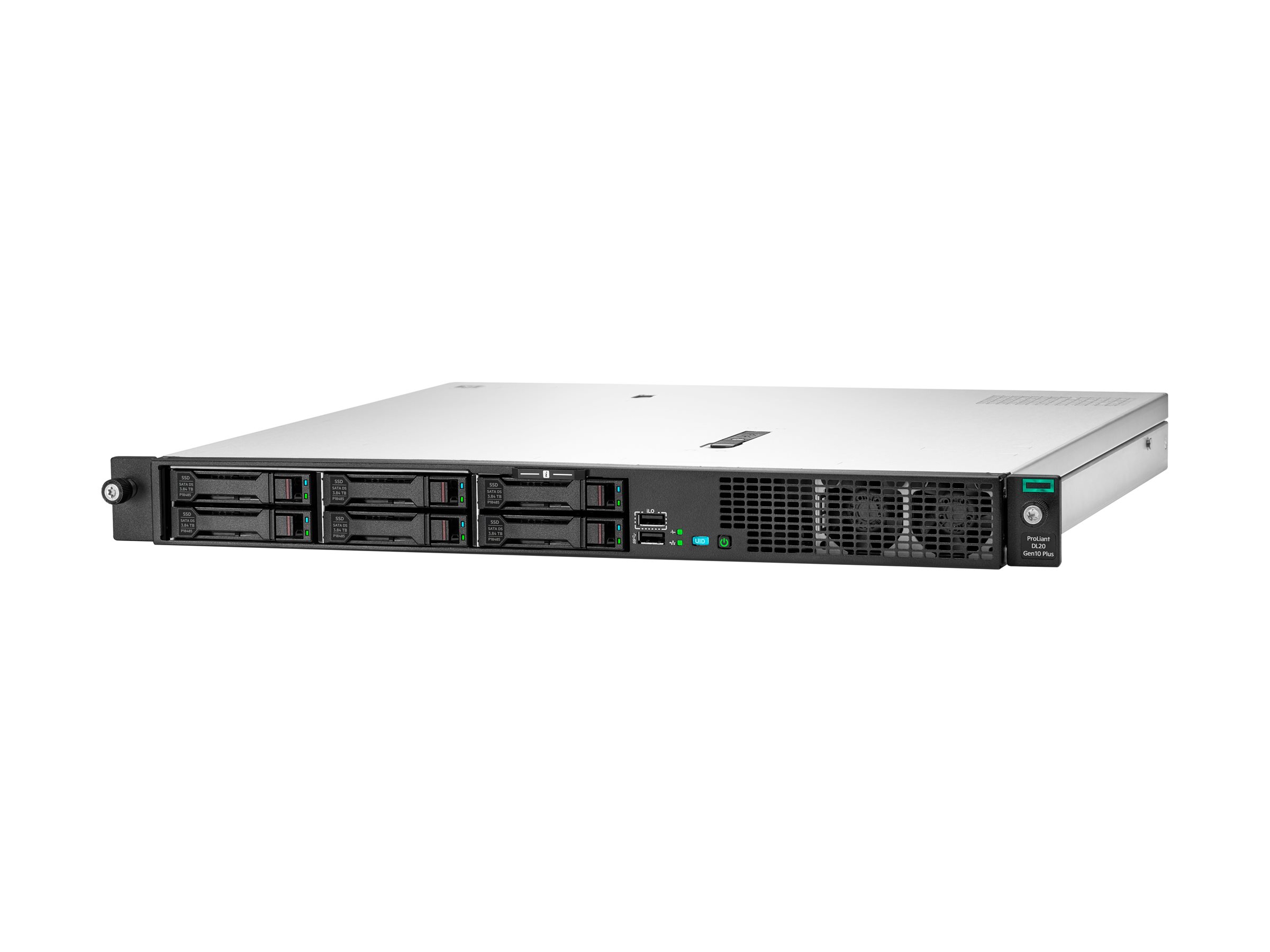

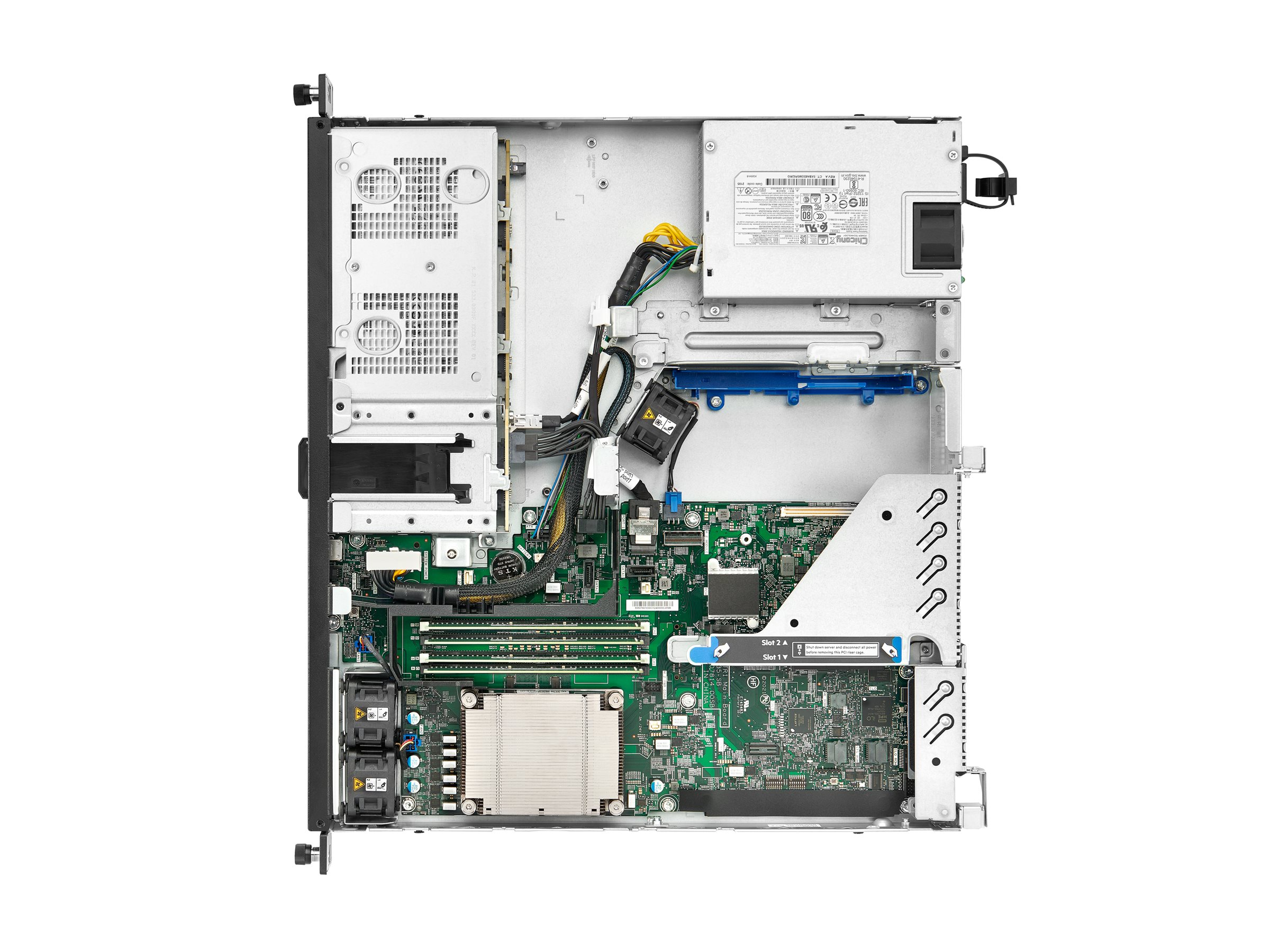

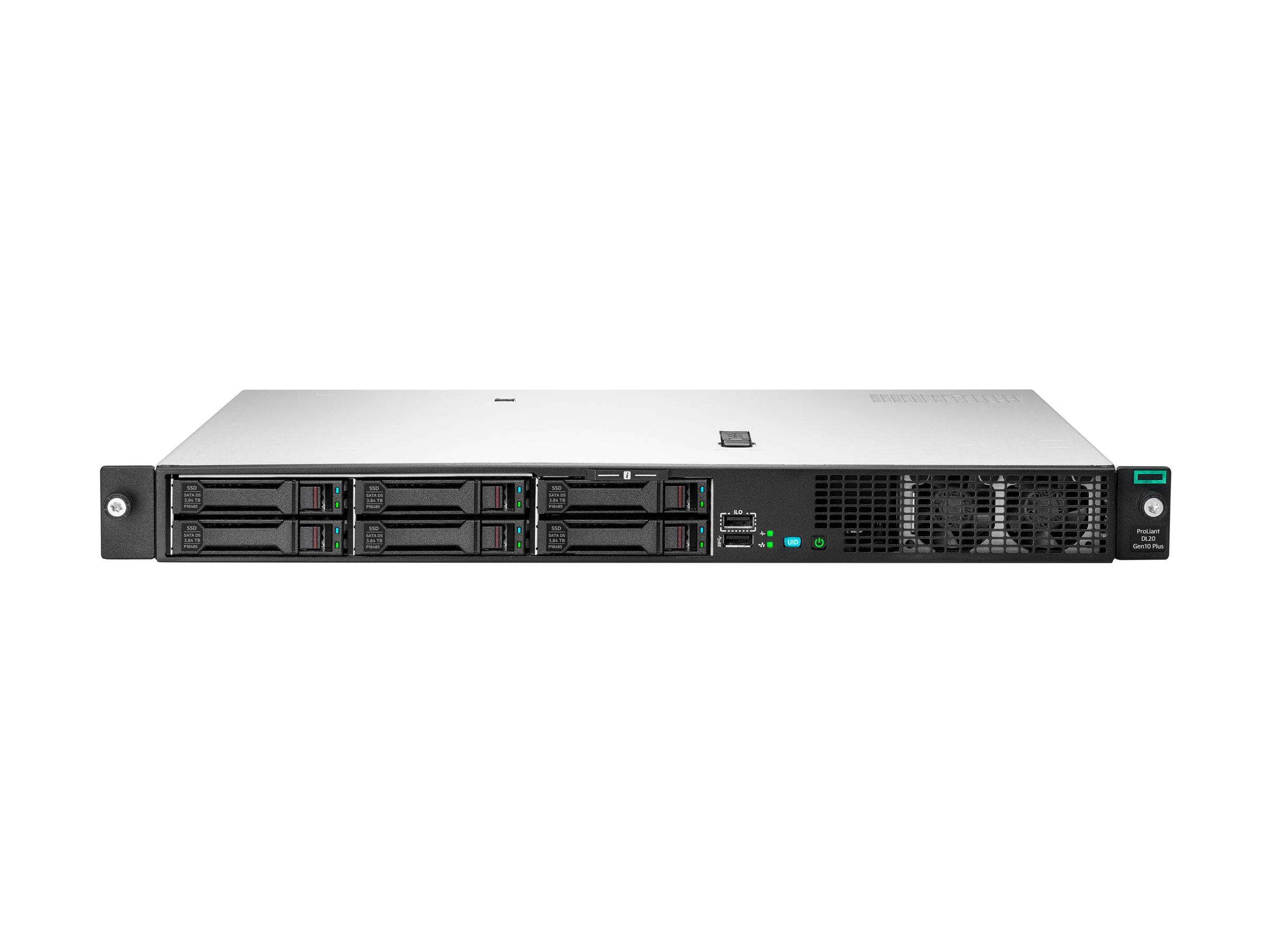

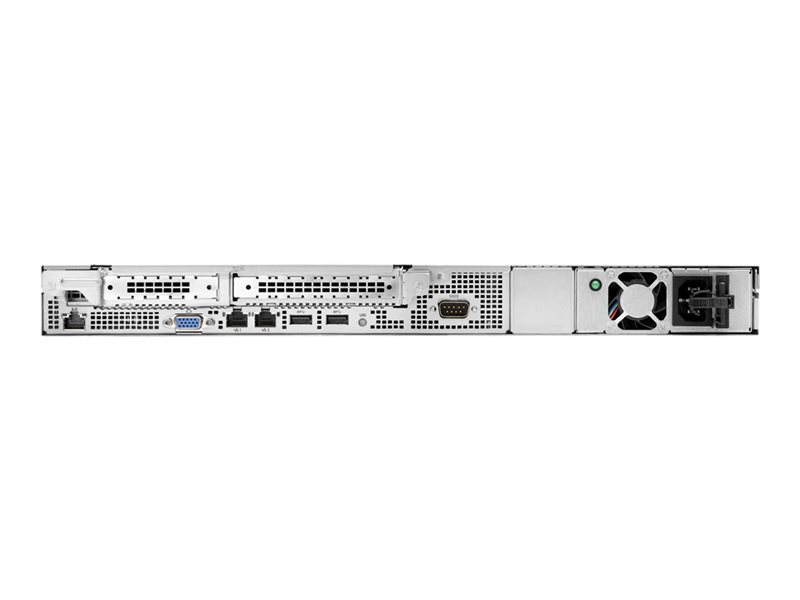

Hewlett Packard Enterprise - HPE ProLiant DL20 Gen10 Plus High Performance

Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2336 / 2.9 GHz - RAM 16 GB - SATA - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - GigE - no OS - monitor: none

Hewlett Packard Enterprise
P44115-B21
N/A
0190017519524
N/A
New

Price: $1,993.15

Total Available: 37

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description HPE ProLiant DL20 Gen10 Plus High Performance - rack-mountable - Xeon E-2336 2.9 GHz - 16 GB - no HDD
Type Server - rack-mountable
Height (Rack Units) 1U
Localization Region: Asia Pacific, Americas
Server Scalability 1-way
Processor 1 x Intel Xeon E-2336 / 2.9 GHz (4.8 GHz) (6-core)
Cache Memory 12 MB L3 cache
Cache Per Processor 12 MB
RAM 16 GB (installed) / 128 GB (max) - DDR4 SDRAM - ECC
Storage Controller RAID (SATA 6Gb/s) (HPE Smart Array S100i SR Software RAID)
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Optical Storage No optical drive
Graphics Controller Matrox G200
Networking GigE
Power AC 120/230 V (50/60 Hz)
Power Redundancy Yes
OS Provided No operating system
Dimensions (WxDxH) 17.1 in x 15 in x 1.7 in
Weight 13.23 lbs
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site - response time: next business day
General
Type Server
Product Form Factor Rack-mountable - 1U
Server Scalability 1-way
Hot-Swap Bays Qty 4
Localization Region: Asia Pacific, Americas
Expansion / Connectivity
Bays 1 (total) / 1 (free) x external 5.25" ¦ 4 (total) / 4 (free) x hot-swap 2.5" SFF
Slots 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (x8 mode)
Interfaces 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) / HP iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal)
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Miscellaneous
Included Accessories HPE Short Friction Rail kit, 3 x system fans
Compliant Standards AES, FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Redfish API, UEFI
RAM
Installed Size 16 GB / 128 GB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 3200 MHz
Rated Memory Speed 3200 MHz
Form Factor DIMM 288-pin
Slots 4 (total) / 3 (empty)
Features Unbuffered, dual channel memory architecture
Configuration Features 1 x 16 GB
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller Broadcom BCM5720
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Lights-Out 4
Features Wake on LAN (WoL), PXE support
Power
Device Type Power supply
Power Redundancy Yes
Installed Qty 1
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 500 Watt
80 PLUS Certification 80 PLUS Platinum
Efficiency 94%
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
Storage Controller
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Storage Controller Name HPE Smart Array S100i SR Software RAID
Channel Qty 4
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Cache Memory
Installed Size L3 cache - 12 MB
Cache Per Processor 12 MB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200
Video Interfaces VGA
Operating System / Software
OS Provided No operating system
Hard Drive
Type No HDD
Dimensions & Weight
Width 17.1 in
Depth 15 in
Height 1.7 in
Weight 13.23 lbs
Environmental Standards
ENERGY STAR Certified Yes
Processor / Chipset
CPU Intel Xeon E-2336
Clock Speed 2.9 GHz
Max Turbo Speed 4.8 GHz
Number of Cores 6-core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Chipset Type Intel C256
