StarTech.com - StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card with 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux

PCIe to DB9 Card (11050-PC-SERIAL-CARD) - Serial adapter - PCIe 2.0 low profile - RS-232 x 1 - yellow

StarTech.com
11050-PC-SERIAL-CARD
N/A
0065030894777
N/A
New

Price: $60.12

Total Available: 917

Product Description

Additional Details

What's Included

Specifications

Main Specifications

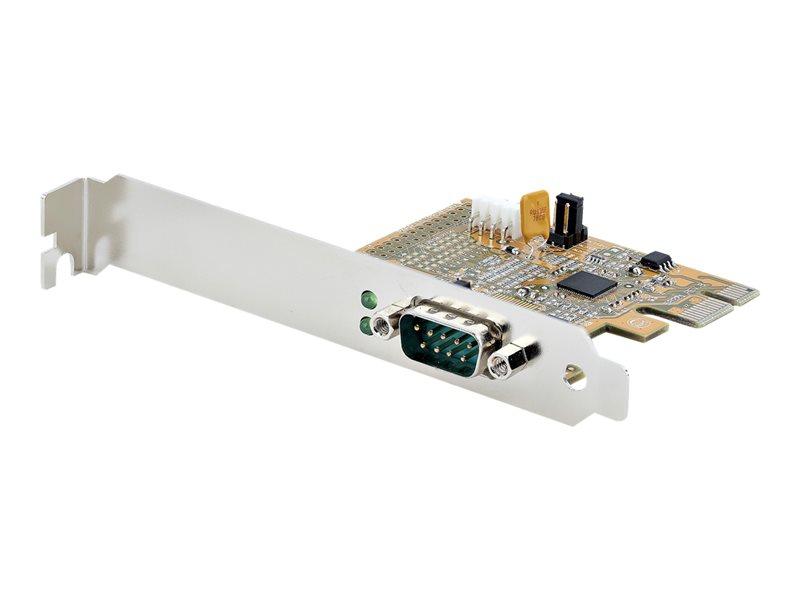

Product Description StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card with 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux - PCIe to DB9 Card (11050-PC-SERIAL-CARD) - serial adapter - PCIe 2.0 - RS-232 x 1
Device Type Serial adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x1
PCI Specification Revision PCIe 2.0
Ports RS-232 x 1
Dimensions (WxDxH) 0.7 in x 2.6 in x 2.6 in
Data Link Protocol RS-232
Data Transfer Rate 921.6 Kbps
Compliant Standards 16C1050 UART
Color Yellow
System Requirements Linux, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11
Manufacturer Warranty 2-year warranty
General
Device Type Serial adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x1
PCI Specification Revision PCIe 2.0
Expansion / Connectivity
Interfaces 1 x RS-232 - 9 pin D-Sub (DB-9) - male (external)
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous
Included Accessories Low-profile bracket
Color Yellow
Networking
Ports RS-232 x 1
Connectivity Technology Wired
Data Link Protocol RS-232
Data Transfer Rate 921.6 Kbps
Status Indicators Status
Features 256-byte FIFO
Compliant Standards 16C1050 UART
Software / System Requirements
OS Required Linux, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95%
Dimensions & Weight
Width 0.7 in
Depth 2.6 in
Height 2.6 in
Dimensions & Weight (Shipping)
Shipping Width 8.1 in
Shipping Depth 5.7 in
Shipping Height 1.5 in
Shipping Weight 7.05 oz
