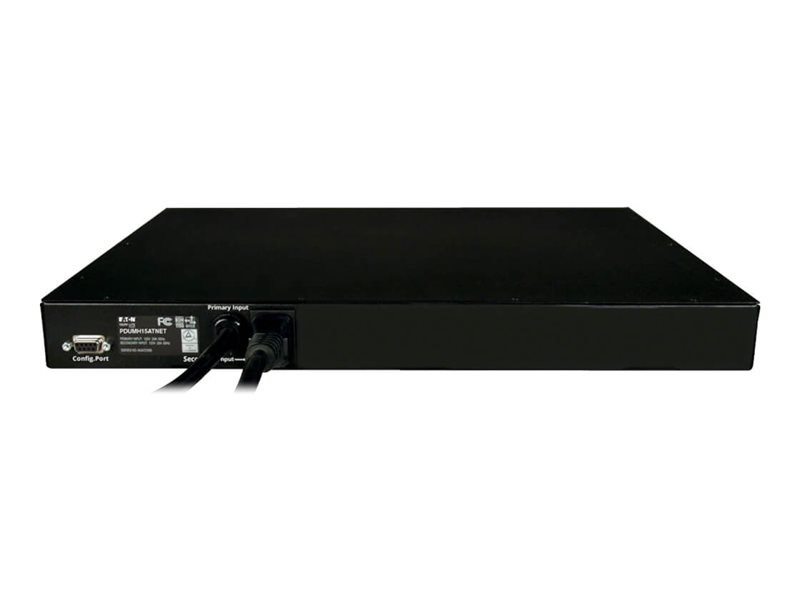

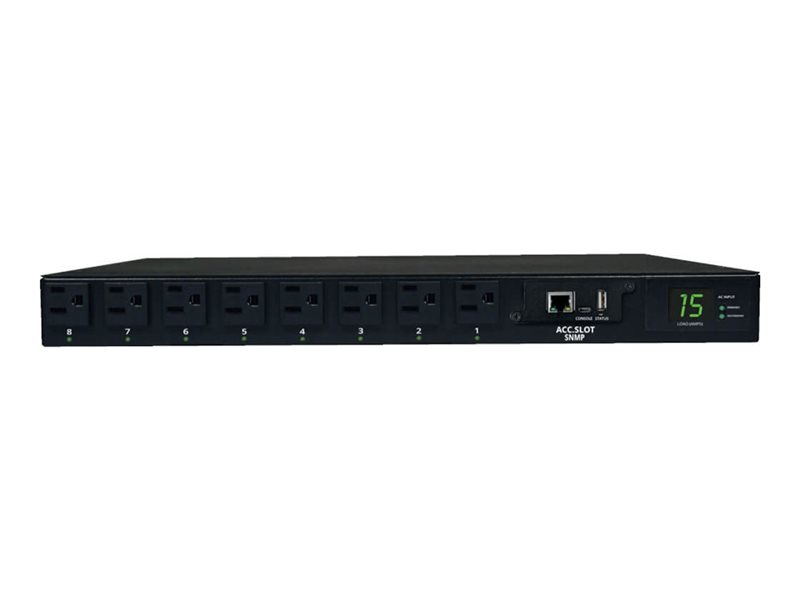

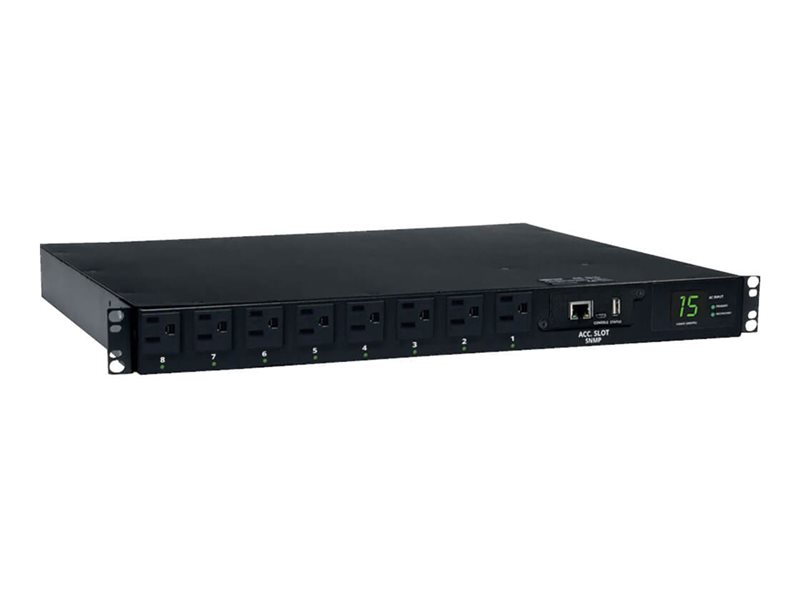

Eaton - Eaton Tripp Lite Series PDU Switched ATS 120V 1.4kW 15A 5-15R 8 Outlet 2 5-15P 1URM
Horizontal rackmount - power distribution unit (rack-mountable) - 15 A - AC 120 V - 1.4 kW - 1800 VA - Ethernet 10/100 - input: NEMA 5-15 - output connectors: 8 (NEMA 5-15/20) - 1U - black
Eaton
PDUMH15ATNET
N/A
0037332136428
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series PDU Switched ATS 120V 1.4kW 15A 5-15R 8 Outlet 2 5-15P 1URM - horizontal rackmount - power distribution unit - 1.4 kW - 1800 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 1U |
| Weight | 11.02 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1.4 kW / 1800 VA |
| Input Connectors | 2 x power NEMA 5-15 |
| Output connectors | 8 x power NEMA 5-15/20 |
| Networking | Ethernet 10/100 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Color | Black |
| Dimensions (WxDxH) | 17.5 in x 14.5 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management - 9 pin D-Sub (DB-9) ¦ 1 x management - RJ-45 ¦ 1 x management - 8 pin mini-DIN ¦ 1 x management - 6 pin mini-DIN (PS/2 style) |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 12 ft ¦ Power cable - integrated - 12 ft |
| Features | Current meter, LED indicators, Automatic Transfer Switch (ATS) |
| Compliant Standards | NOM, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA 5-15 |
| Power Output Connectors Details | 8 x power NEMA 5-15/20 |
| Output Voltage | AC 120 V 50/60 Hz |
| Max Electric Current | 15 A |
| Power Capacity | 1.4 kW / 1800 VA |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 14.5 in |
| Height | 1.7 in |
| Weight | 11.02 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 in |
| Shipping Depth | 23.5 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 15.21 lbs |
