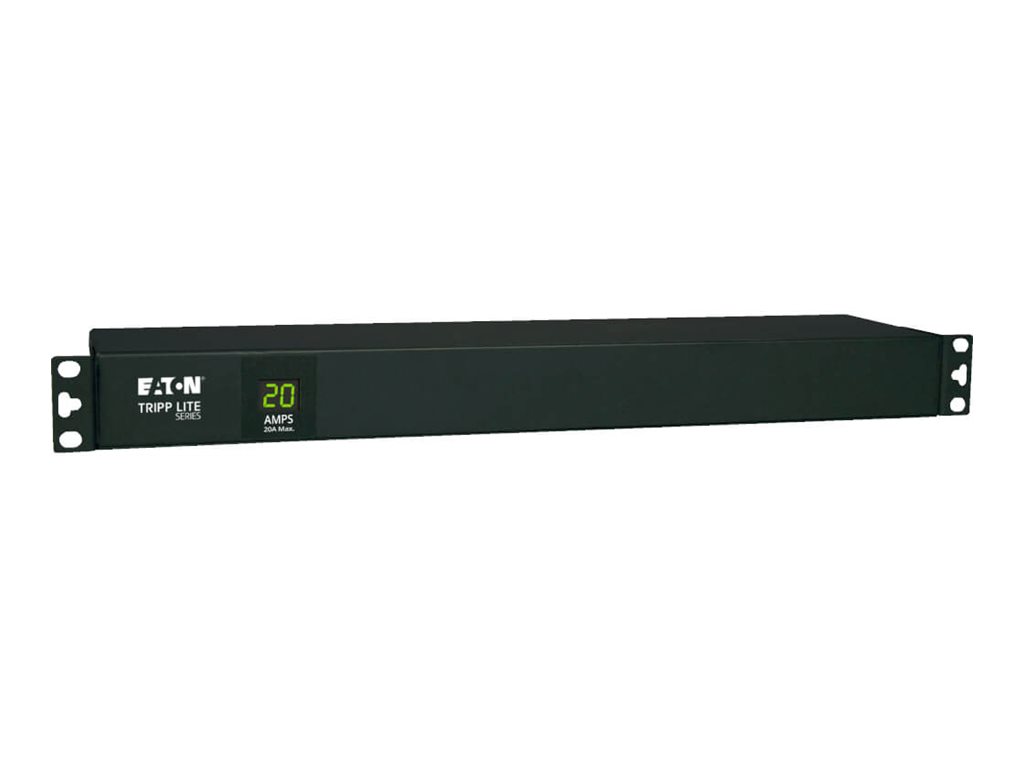

Eaton - Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM
Horizontal rackmount - power distribution unit (rack-mountable) - 20 A - AC 120 V - 1.9 kW - input: NEMA L5-20 - output connectors: 12 (NEMA 5-15/20) - 1U - 19" - black
Eaton
PDUMH20
N/A
0037332142504
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM - horizontal rackmount - power distribution unit - 1.9 kW |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" - 1U |
| Weight | 3.09 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1.9 kW |
| Input Connectors | 1 x power NEMA L5-20 |

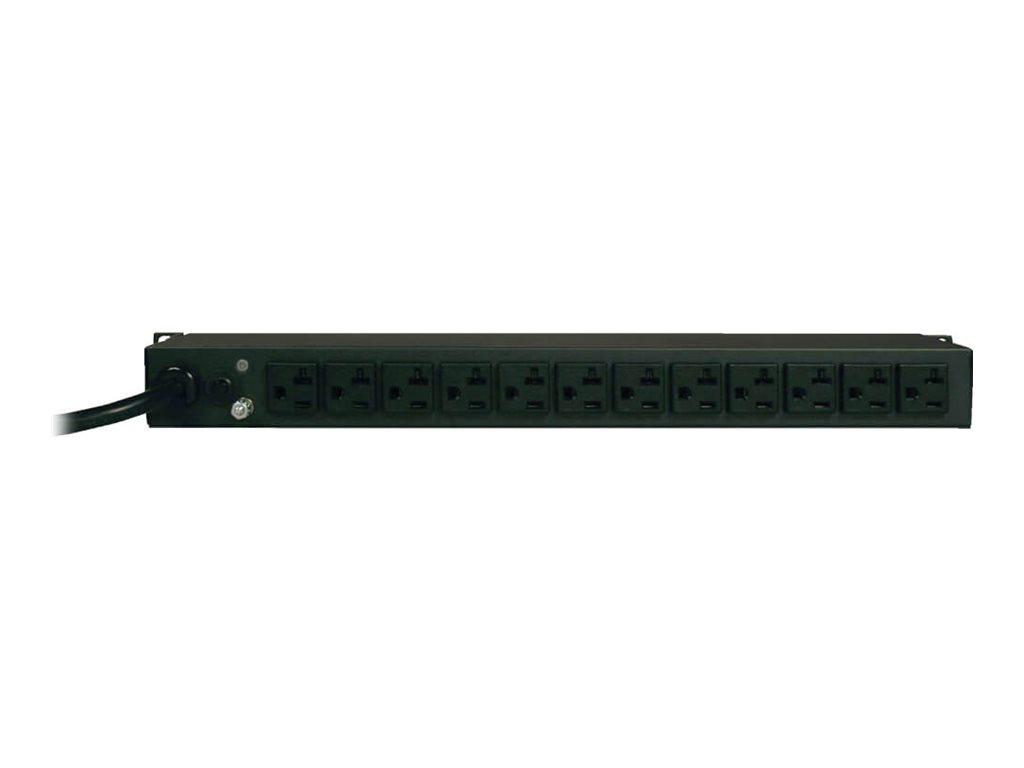

| Output connectors | 12 x power NEMA 5-15/20 |
| Color | Black |
| Dimensions (WxDxH) | 17.5 in x 4.5 in x 1.8 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 15 ft ¦ Power connector adapter - external |
| Features | Wall mountable, current meter |
| Compliant Standards | RoHS, UL 60950-1, CSA C22.2 No. 60950-1-03 |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20 |
| Power Output Connectors Details | 12 x power NEMA 5-15/20 |
| Output Voltage | AC 120 V 50/60 Hz |
| Max Electric Current | 20 A |
| Power Capacity | 1.9 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 4.5 in |
| Height | 1.8 in |
| Weight | 3.09 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.5 in |
| Shipping Depth | 10 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 3.53 lbs |
