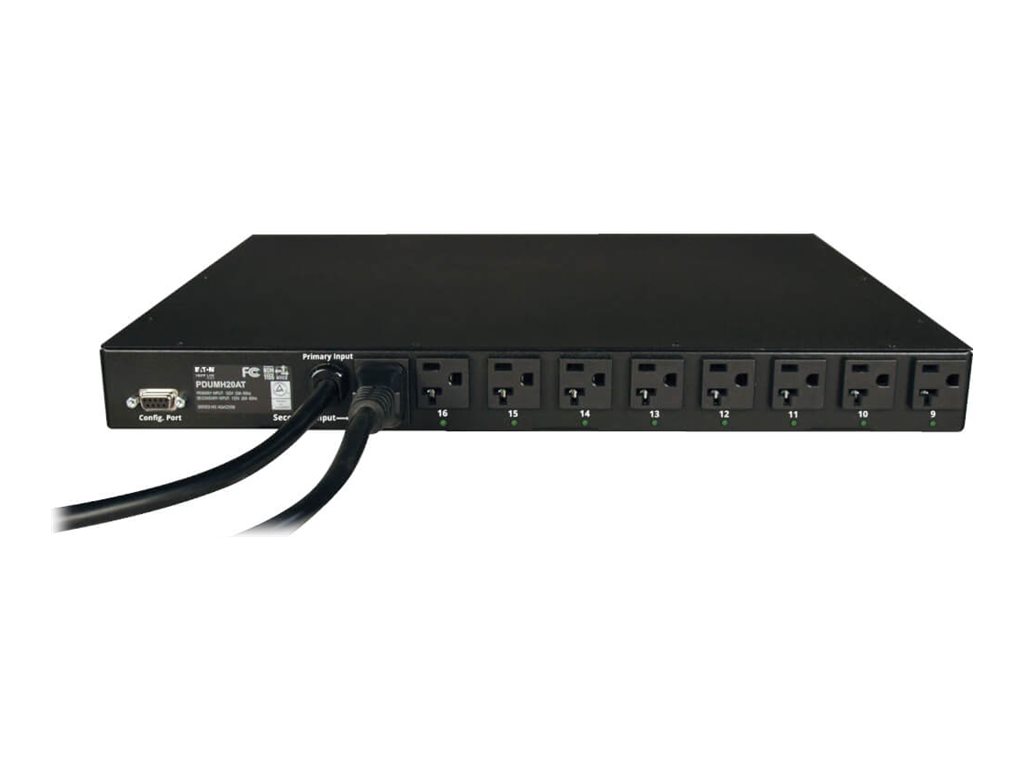

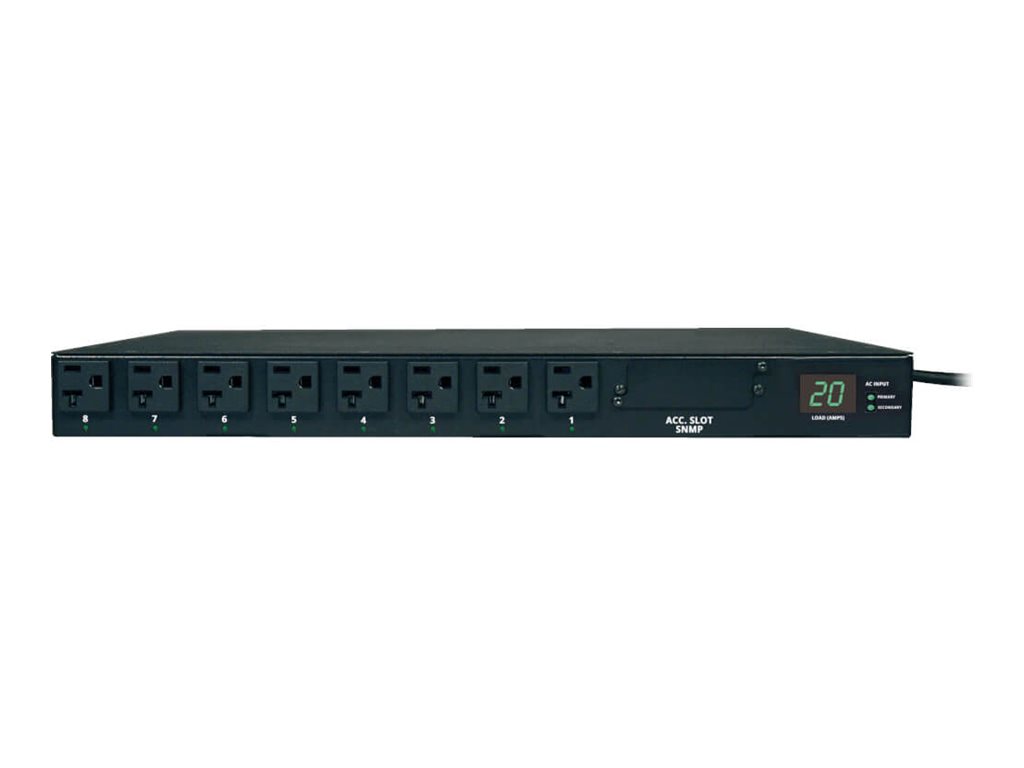

Eaton - Eaton Tripp Lite Series PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U
Horizontal rackmount - power distribution unit (rack-mountable) - 20 A - AC 120 V - 1.9 kW - 2400 VA - input: NEMA L5-20 - output connectors: 16 (NEMA 5-15/20) - 1U - black
Eaton
PDUMH20AT
N/A
0037332126665
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U - horizontal rackmount - power distribution unit - 1.9 kW - 2400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 1U |
| Weight | 12.13 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1.9 kW / 2400 VA |
| Input Connectors | 2 x power NEMA L5-20 |
| Output connectors | 16 x power NEMA 5-15/20 |
| Color | Black |
| Dimensions (WxDxH) | 17.5 in x 14.5 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management - 9 pin D-Sub (DB-9) |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 12 ft ¦ Power cable - integrated - 12 ft ¦ 2 x power connector adapter 5.9 in |
| Features | Wall mountable, current meter, amp meter, LED indicators, Automatic Transfer Switch (ATS) |
| Compliant Standards | NOM, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA L5-20 |
| Power Output Connectors Details | 16 x power NEMA 5-15/20 |
| Output Voltage | AC 120 V 50/60 Hz |
| Max Electric Current | 20 A |
| Power Capacity | 1.9 kW / 2400 VA |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 14.5 in |
| Height | 1.7 in |
| Weight | 12.13 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 in |
| Shipping Depth | 23.5 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 16.31 lbs |
