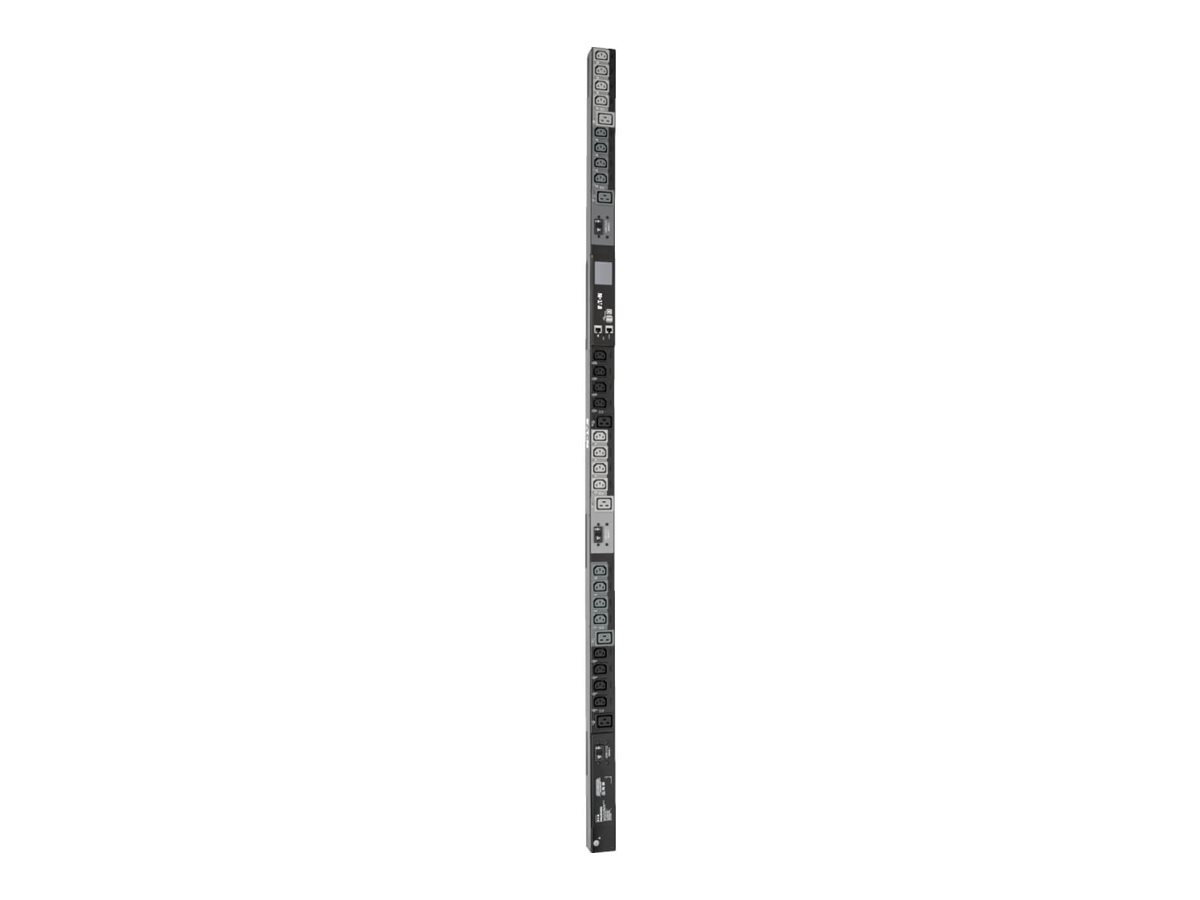

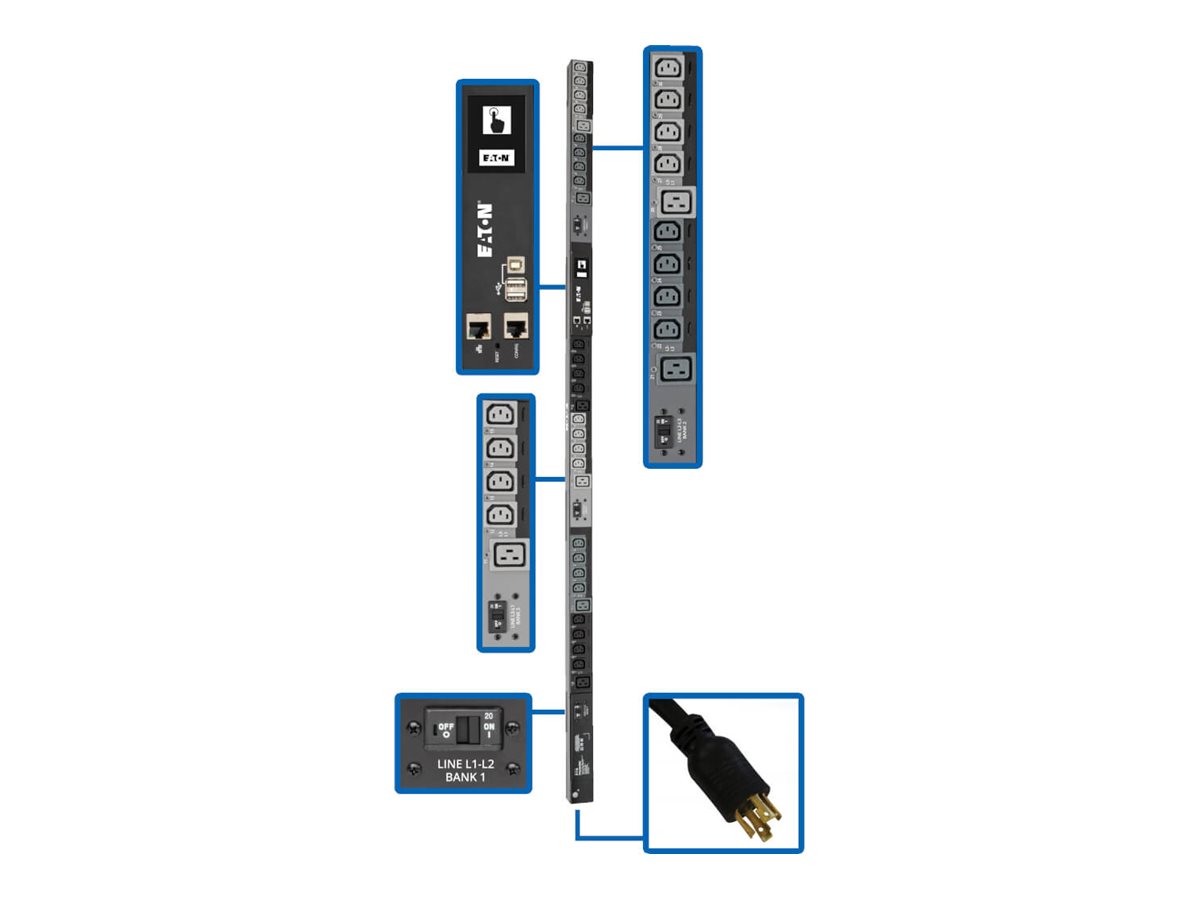

Eaton - Eaton 10kW 200-240V 3PH Switched PDU
LX Interface, Gigabit, 30 Outlets, L21-30P Input, LCD, 3 m Cord, 0U 1.8 m Height, TAA - Power distribution unit (rack-mountable) - 24 A - AC 200/208/240 V - 10 kW - 3-phase - Ethernet 10/100, USB, serial - input: NEMA L21-30P - output connectors: 30 (power IEC 60320 C13, IEC 60320 C19) - 0U - 10 ft cord - TAA Compliant
Eaton
PDU3EVSR10L2130
N/A
0037332209474
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton 10kW 200-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, L21-30P Input, LCD, 3 m Cord, 0U 1.8 m Height, TAA - power distribution unit - 10 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 20 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 200/208/240 V |
| Output Voltage | AC 200/208/240 V |
| Power Capacity | 10 kW |
| Input Connectors | 1 x power NEMA L21-30P |

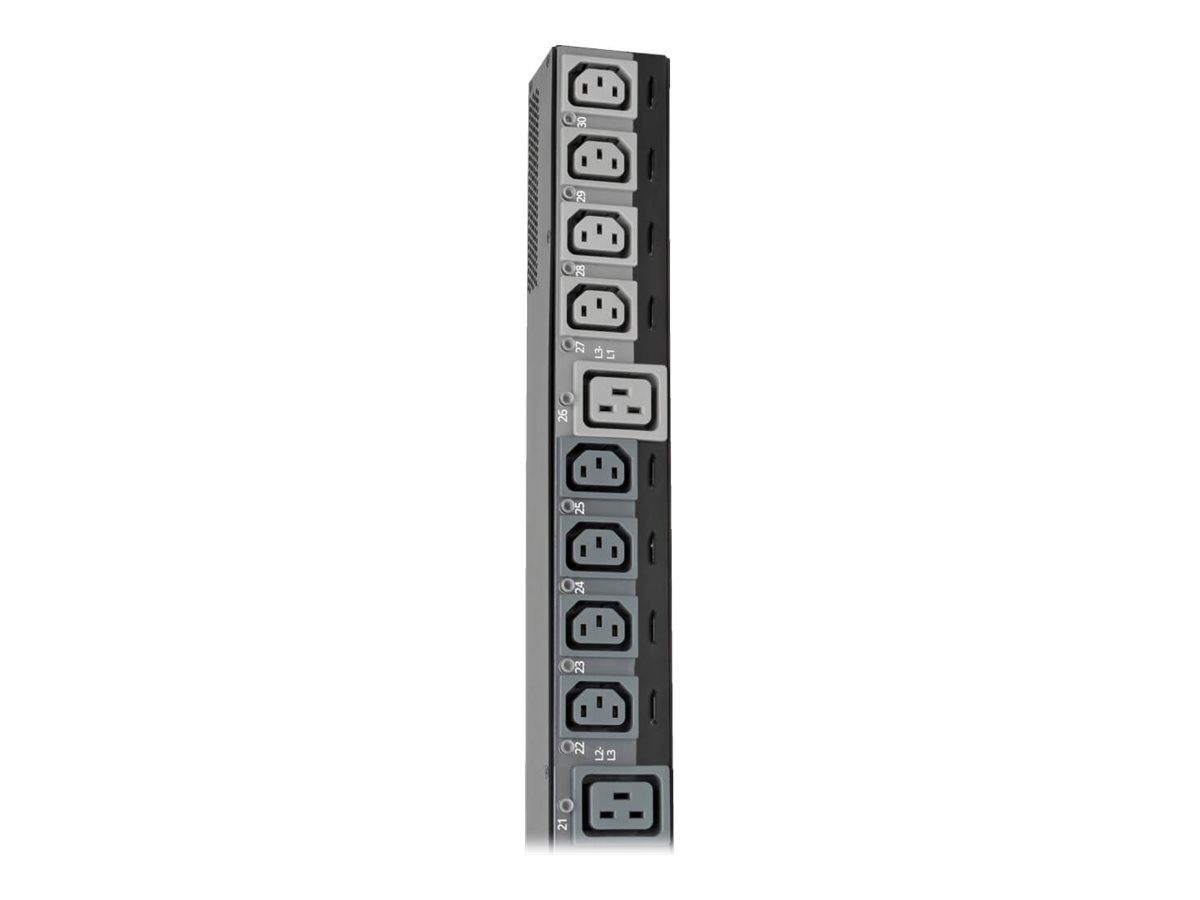

| Output connectors | 24 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |

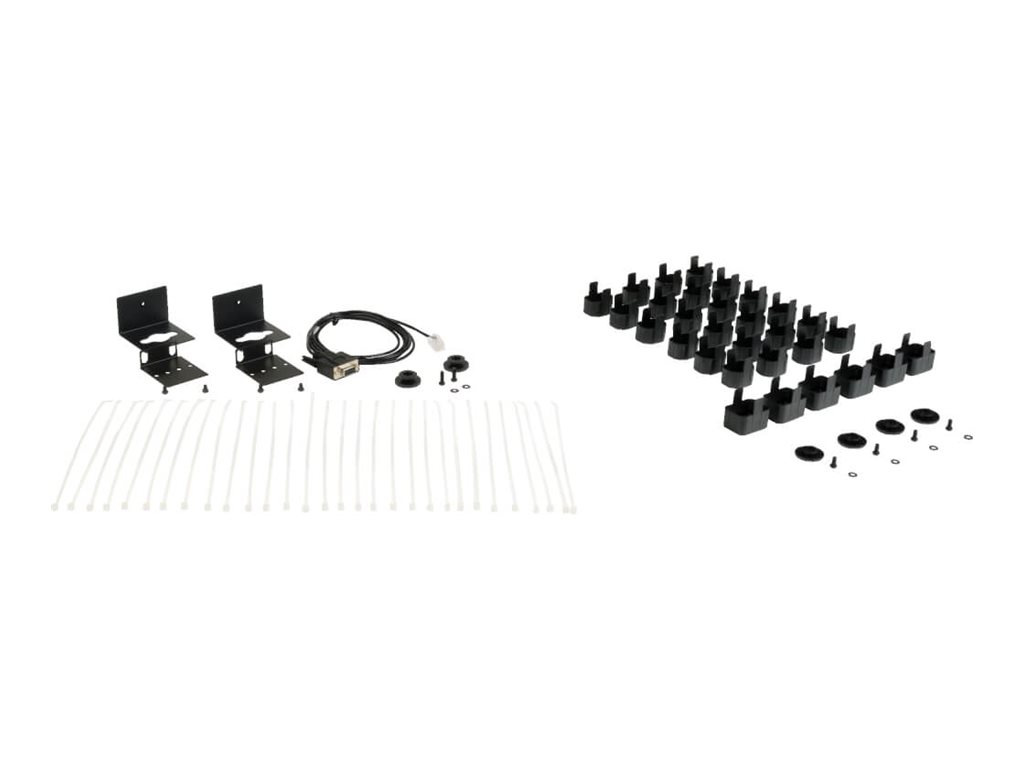

| Included Accessories | 30 plug-lock insert sleeves |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 2.2 in x 2.9 in x 70 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Expansion / Connectivity | |

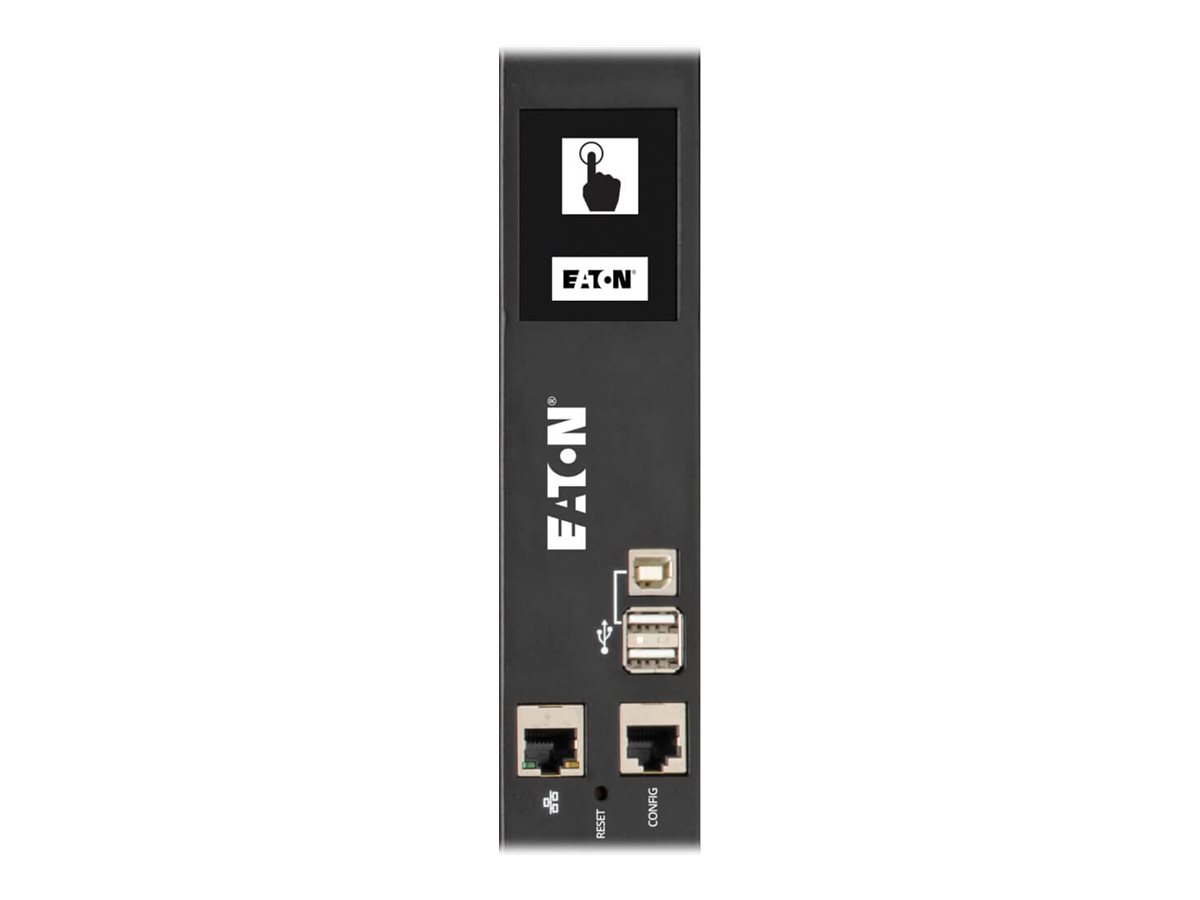

| Interfaces | 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 30 plug-lock insert sleeves |
| Cables Included | Power cable - external - 10 ft |
| Rack Mounting Kit | Included |

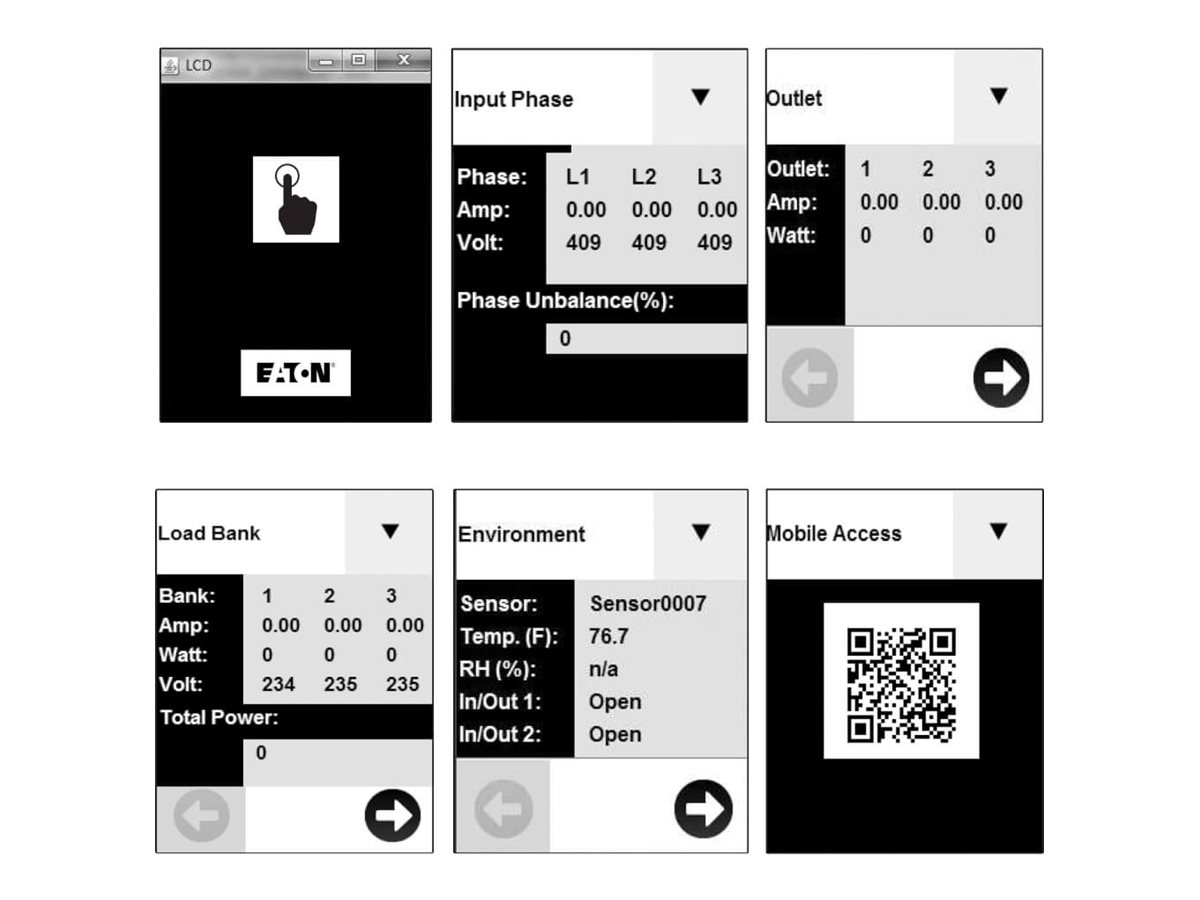

| Features | Vertical orientation, LCD display, current meter, amp meter, email alerts support, firmware upgradable |
| Compliant Standards | NOM, RoHS, UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 200/208/240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Input Connectors | 1 x power NEMA L21-30P |
| Power Output Connectors Details | 24 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 200/208/240 V 50/60 Hz |
| Max Electric Current | 24 A |
| Power Capacity | 10 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.9 in |
| Height | 70 in |
| Weight | 20 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.9 in |
| Shipping Depth | 9.6 in |
| Shipping Height | 76 in |
| Shipping Weight | 27.12 lbs |
