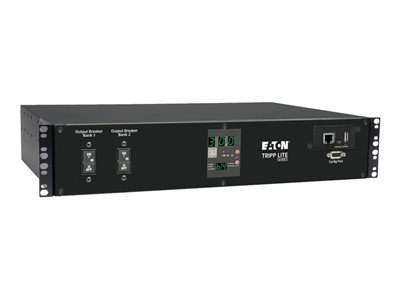

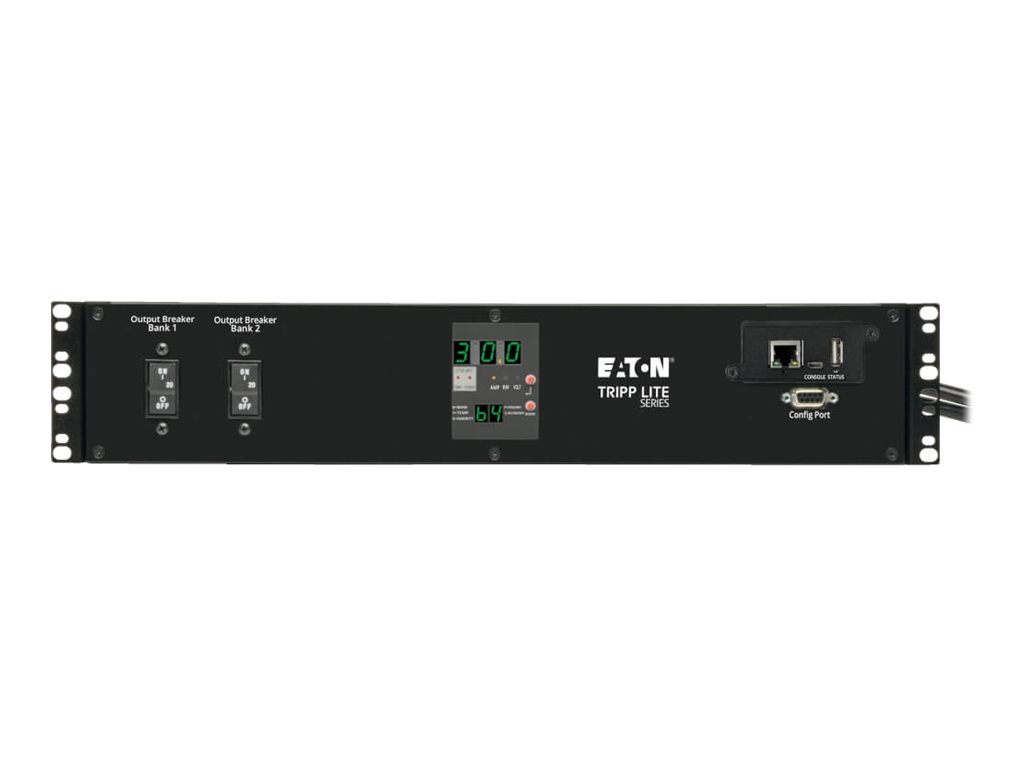

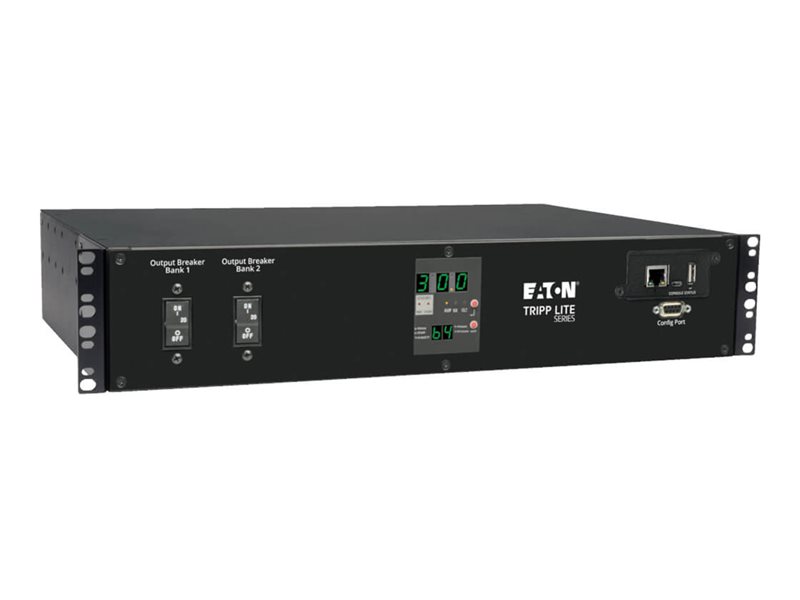

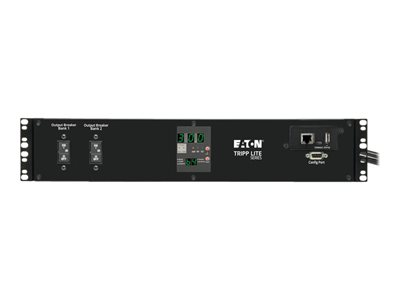

Eaton - Eaton Tripp Lite Series PDU Switched ATS 208V 30A 16 C13; 2 C19; 1 L6-30R Horizontal 2U
Horizontal rackmount - power distribution unit (rack-mountable) - 30 A - AC 208 V - 5 kW - Ethernet - input: NEMA L6-30 - output connectors: 19 (power IEC 60320 C13) - 2U - black
Eaton
PDUMH30HVATNET
N/A
0037332159601
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series PDU Switched ATS 208V 30A 16 C13; 2 C19; 1 L6-30R Horizontal 2U - horizontal rackmount - power distribution unit - 5 kW |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 2U |
| Weight | 13.89 lbs |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 5 kW |
| Input Connectors | 2 x power NEMA L6-30 |

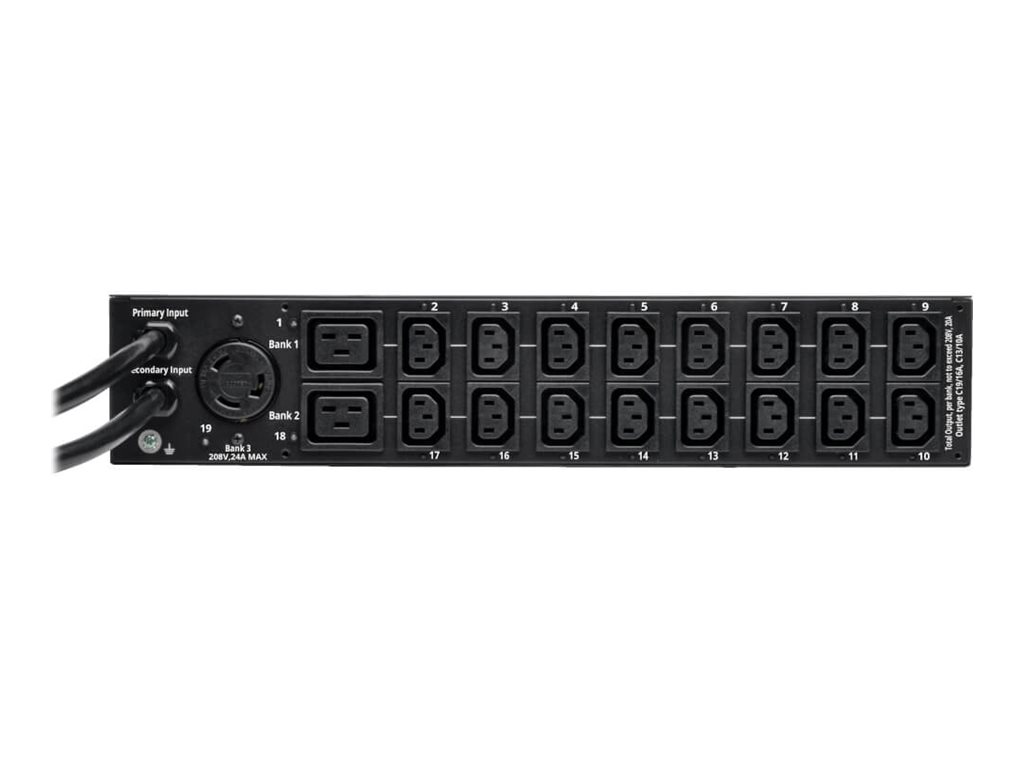

| Output connectors | 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x power NEMA L6-30 |
| Networking | Ethernet |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS |
| Color | Black |
| Dimensions (WxDxH) | 17.5 in x 12.5 in x 3.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

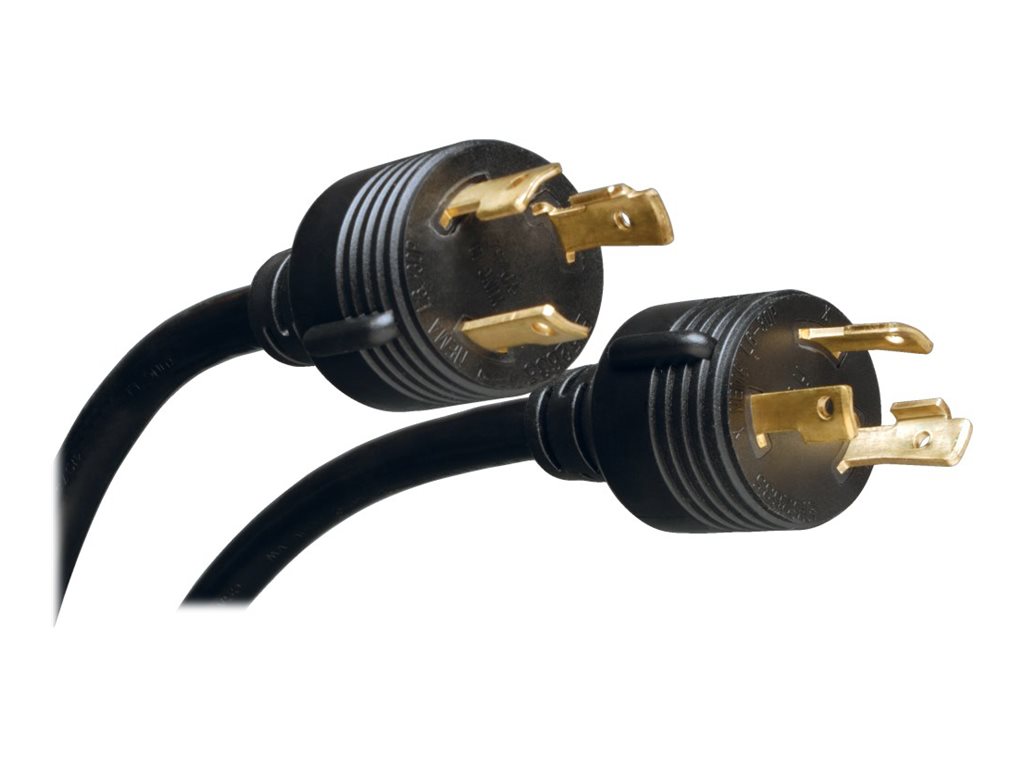

| Cables Included | 2 x power cable 10 ft |

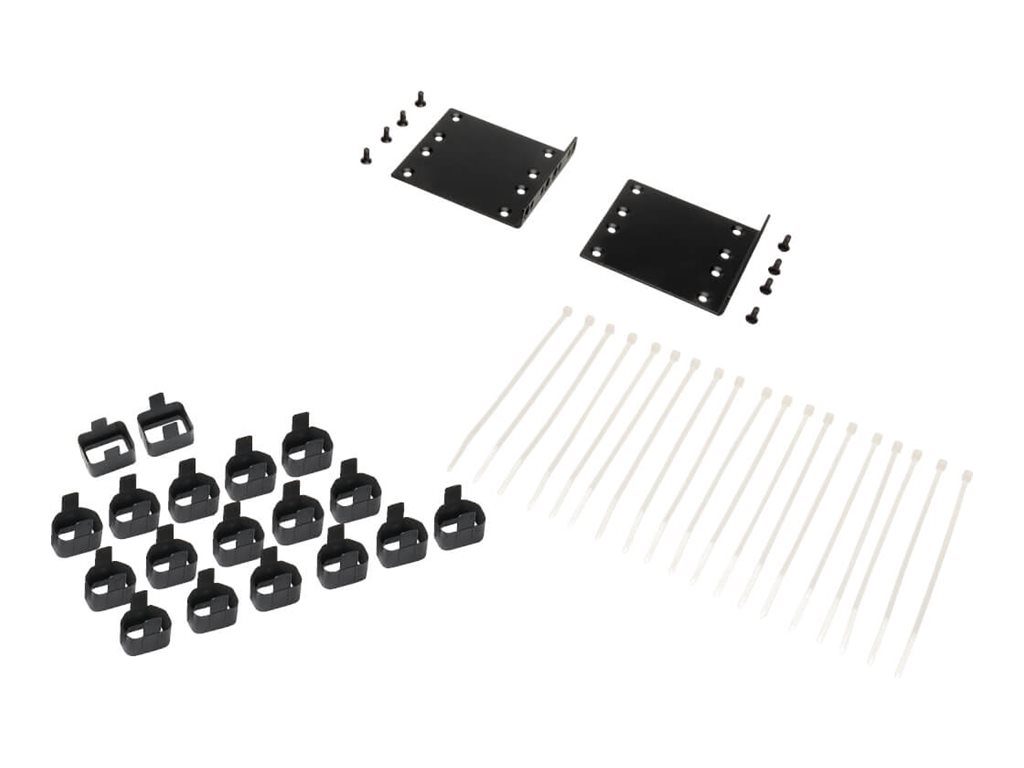

| Rack Mounting Kit | Included |

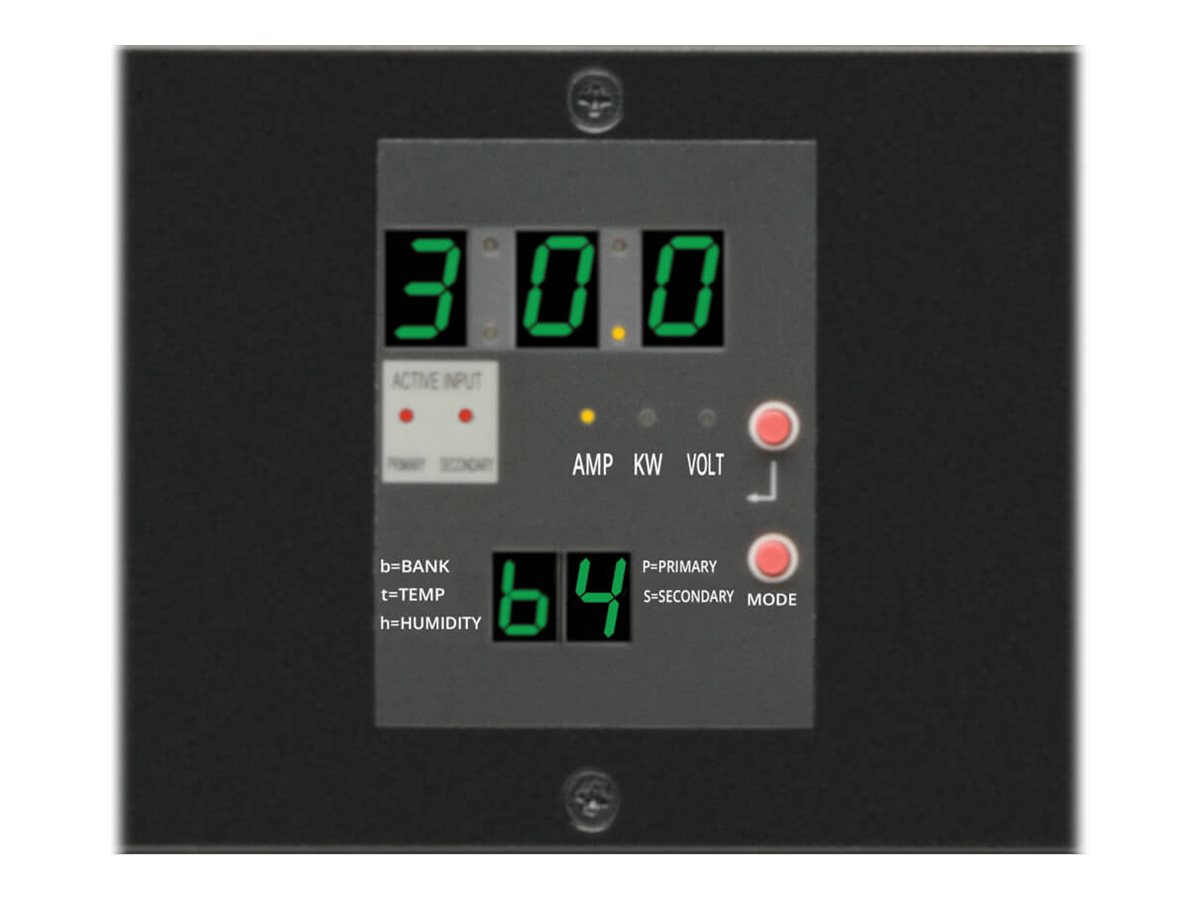

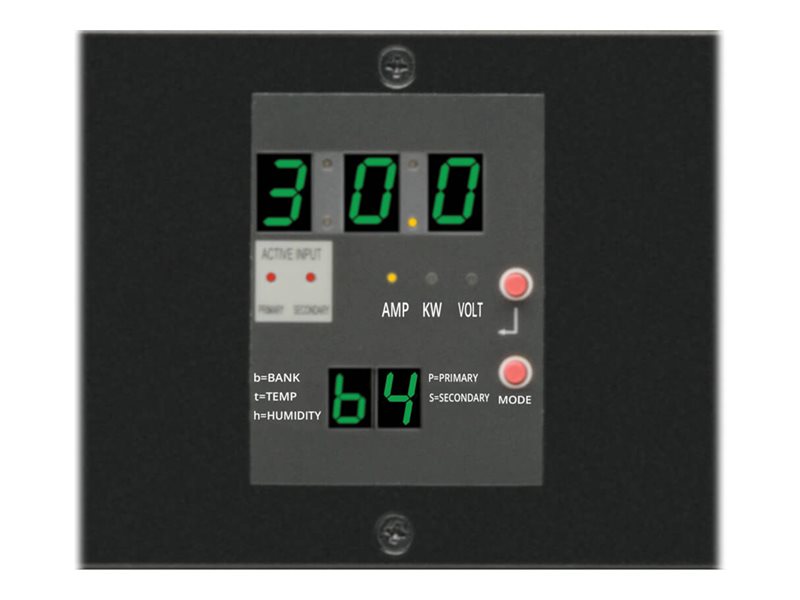

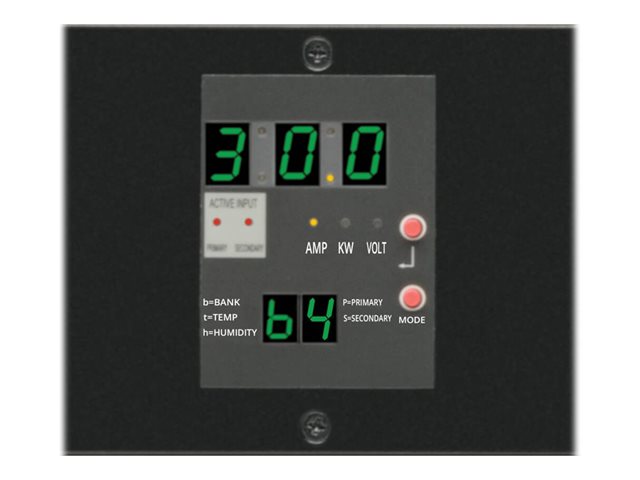

| Features | LED display, current meter, LED indicators, Automatic Transfer Switch (ATS) |
| Compliant Standards | NOM, RoHS, UL 60950-1 |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, Telnet, HTTP, HTTPS |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz |
| Input Connectors | 2 x power NEMA L6-30 |
| Power Output Connectors Details | 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x power NEMA L6-30 |
| Output Voltage | AC 208 V 60 Hz |
| Max Electric Current | 30 A |
| Power Capacity | 5 kW |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 12.5 in |
| Height | 3.5 in |
| Weight | 13.89 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.5 in |
| Shipping Depth | 17 in |
| Shipping Height | 8 in |
