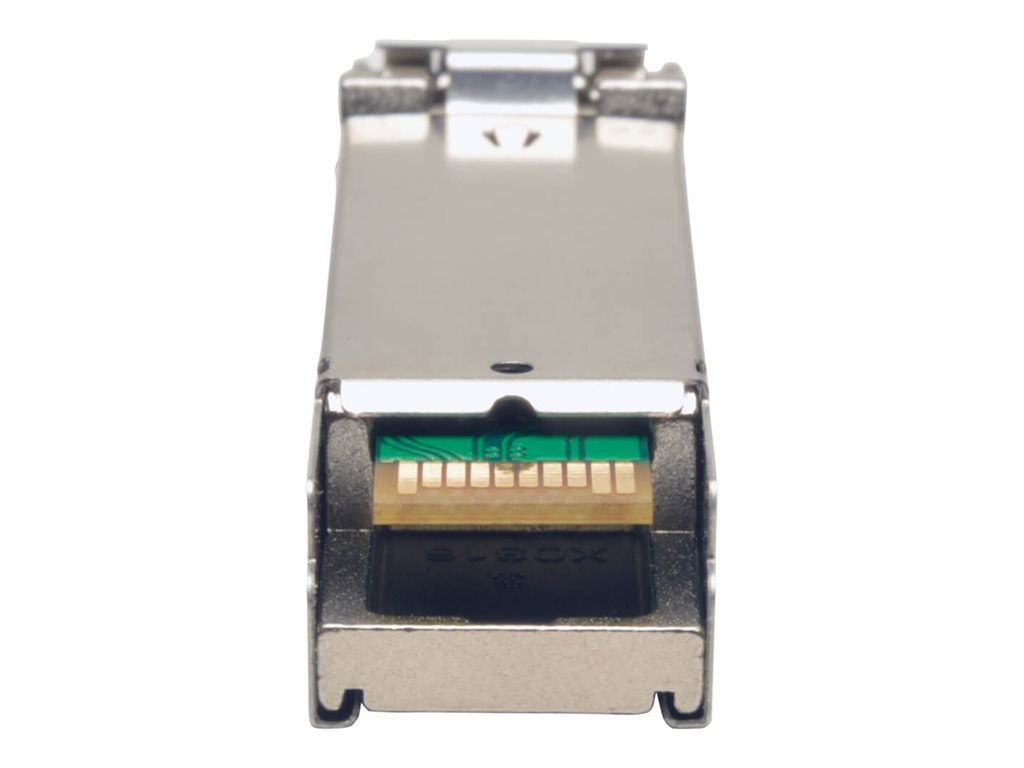

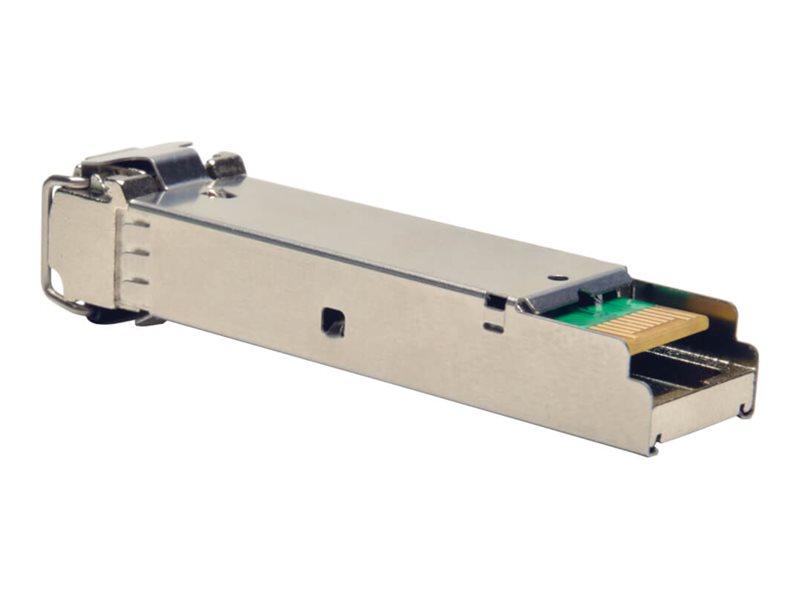

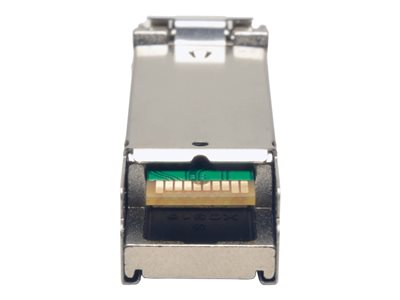

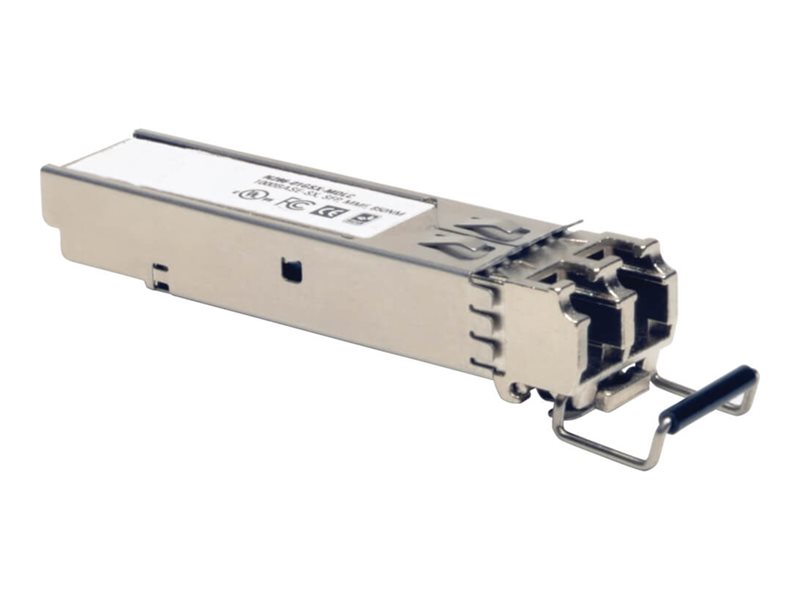

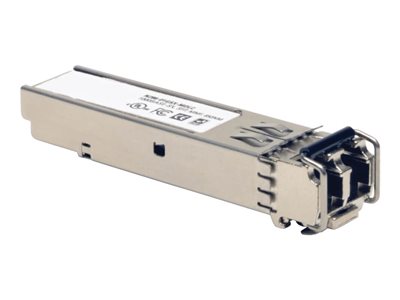

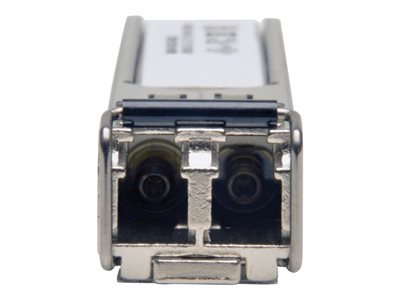

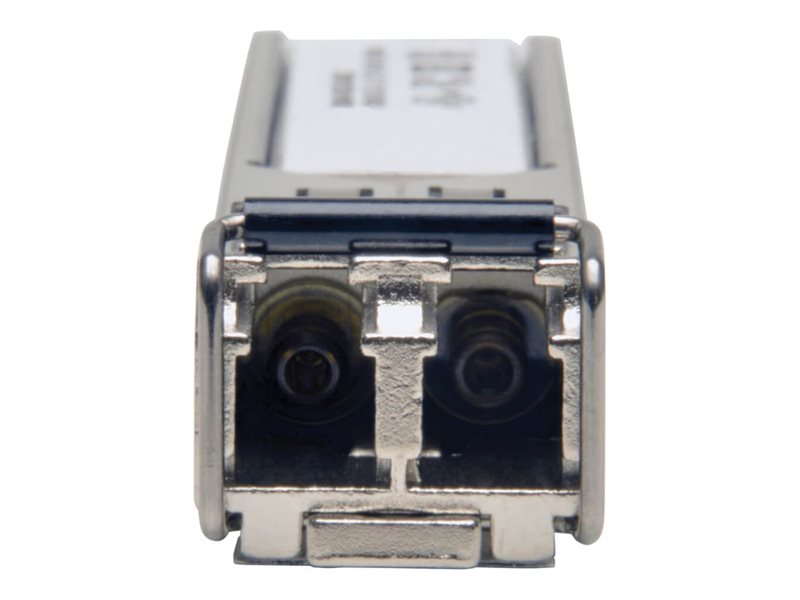

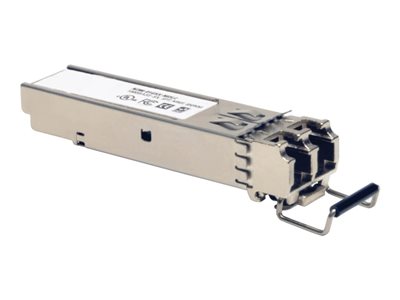

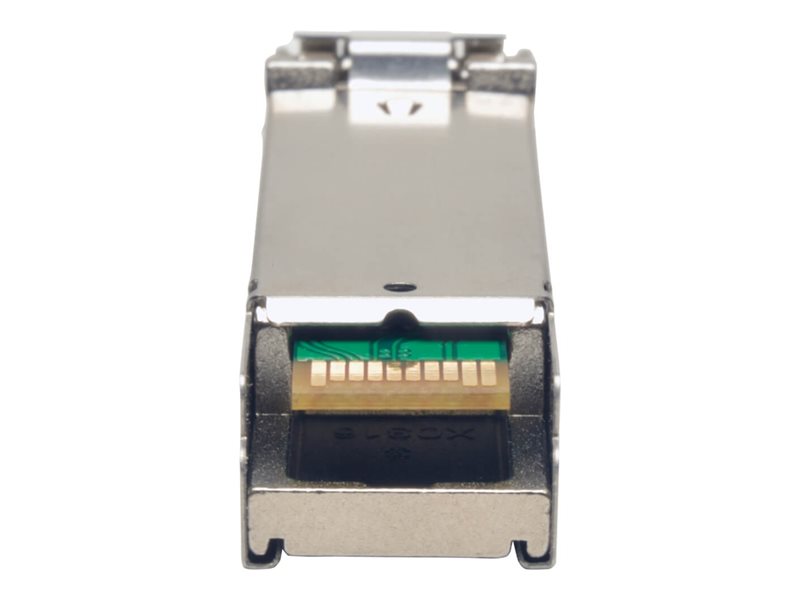

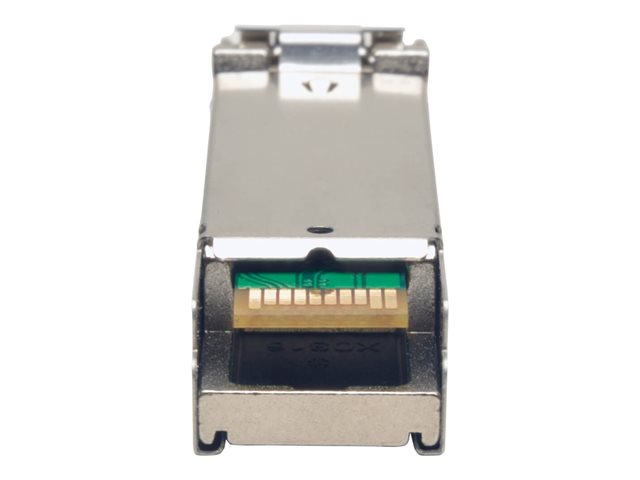

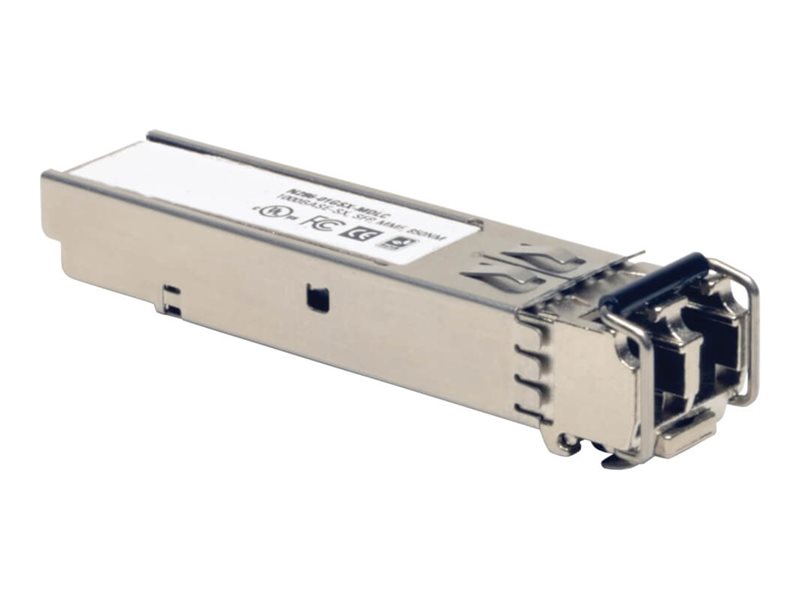

Eaton - Eaton Tripp Lite Series SFP Transceiver MM Fiber Cisco GLC-SX-MMD Compatible 1000Base-SX 550M LC
SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-SX-MMD) - 1GbE - 1000Base-SX - LC multi-mode - up to 1800 ft - 850 nm
Eaton
N286-01GSX-MDLC
N/A
0037332185488
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series SFP Transceiver MM Fiber Cisco GLC-SX-MMD Compatible 1000Base-SX 550M LC - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 1800 ft |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MMD |
| Dimensions (WxDxH) | 0.5 in x 2.2 in x 0.3 in |
| Weight | 0.8 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | MSA |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-SX-MMD |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 1800 ft |
| Features | Digital Diagnostics Monitoring Interface (DDMI), Digital Optical Monitoring (DOM) support |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.2 in |
| Height | 0.3 in |
| Weight | 0.8 oz |
