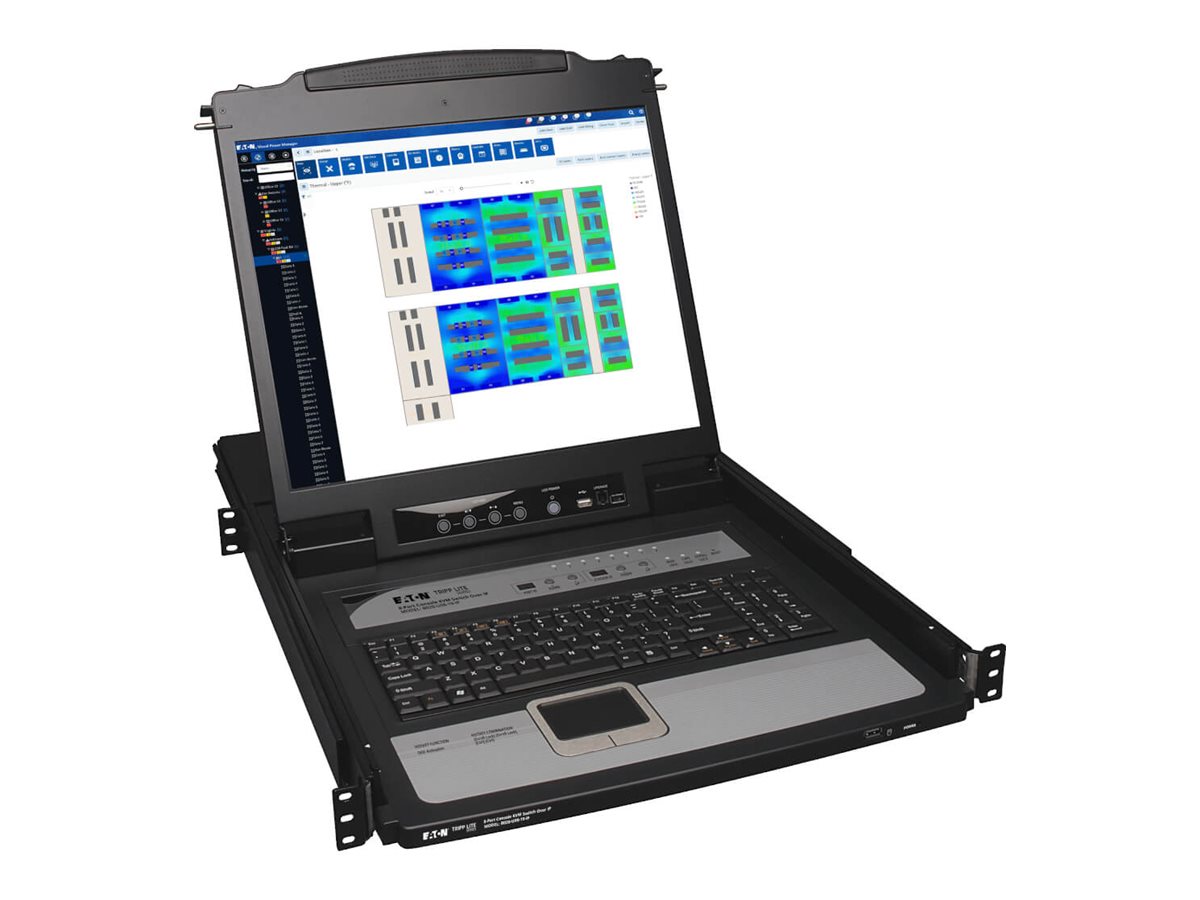

Eaton - Eaton Tripp Lite Series 8-Port Rack Console KVM Switch built in IP w/ 19" LCD 1U
KVM console with KVM switch - 8 ports - 19" - rack-mountable - 1280 x 1024 @ 75 Hz - VGA - black - 1U
Eaton
B020-U08-19-IP
N/A
0037332152886
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 8-Port Rack Console KVM Switch built in IP w/ 19" LCD 1U - KVM console - 19" |
| Device Type | KVM console - 19" |
| KVM Switch | 8 ports |
| Features | Keyboard, touchpad |
| Native Resolution | 1280 x 1024 at 75 Hz |
| Input Connectors | VGA |
| Voltage | AC 120/230 V (50/60 Hz) |
| Color | Black |
| Dimensions (WxDxH) | 18.9 in x 27 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 31.08 lbs |
| Compliant Standards | CSA, FCC Part 15 A, UL 60950-1, EN 60950-1 |
| General | |
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 19" |
| Native Resolution | 1280 x 1024 at 75 Hz |
| Color | Black |
| Dimensions (WxDxH) | 18.9 in x 27 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 31.08 lbs |
| Miscellaneous | |

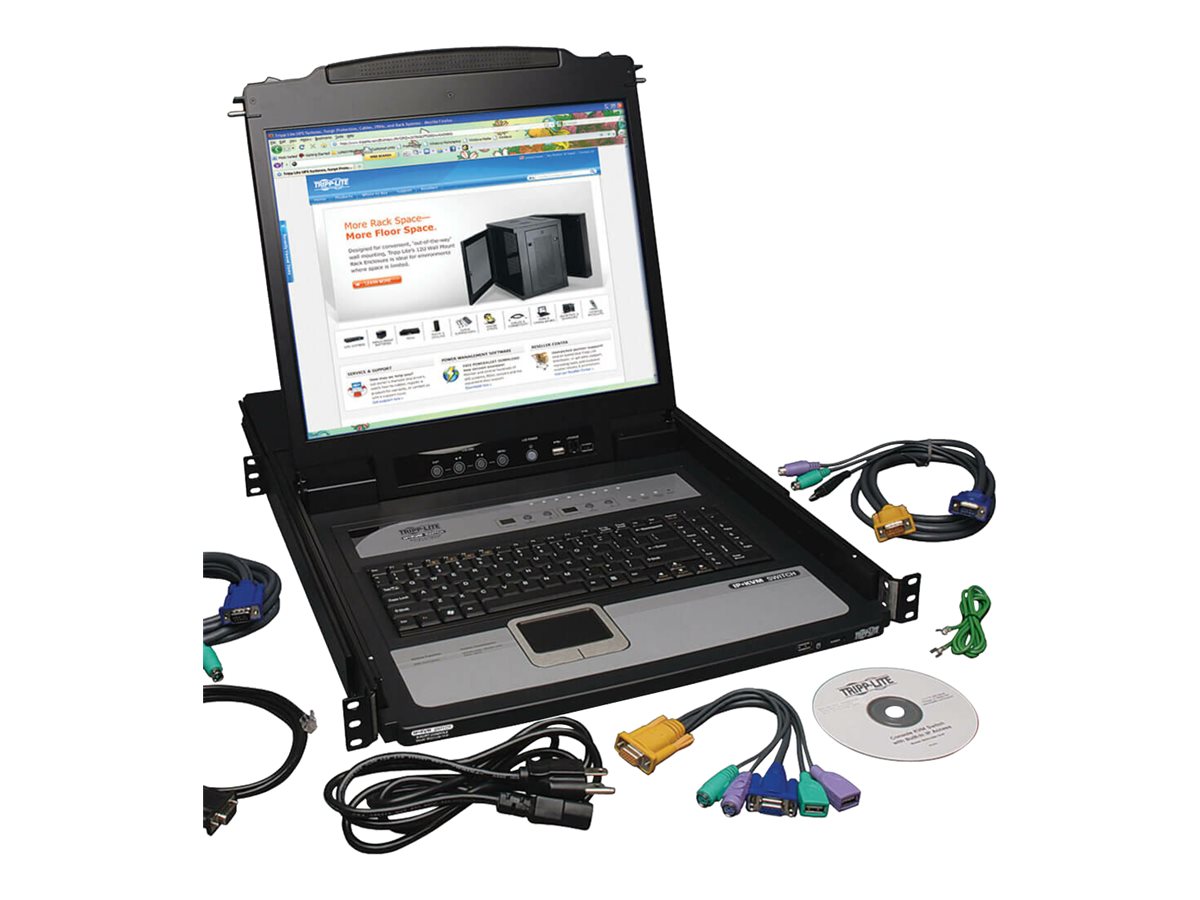

| Cables Included | 2 x keyboard / mouse / video / USB cable - 6 ft ¦ 1 x serial cable |
| Rack Mounting Kit | Included |
| Compliant Standards | CSA, FCC Part 15 A, UL 60950-1, EN 60950-1 |
| Power | |
| Power Supply | Internal |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% |
| Connectivity | |
| Interfaces | 8 x KVM ¦ Management (RJ-45) ¦ Stacking (DB-25) ¦ USB |
| KVM | |
| Type | KVM switch - 8 ports |
| Max Resolution | 1600 x 1200 @ 60 Hz |
| Max Cascading Depth | 504 |
| Features | IP-based user connection |
| Input | |
| Type | Keyboard, touchpad |
